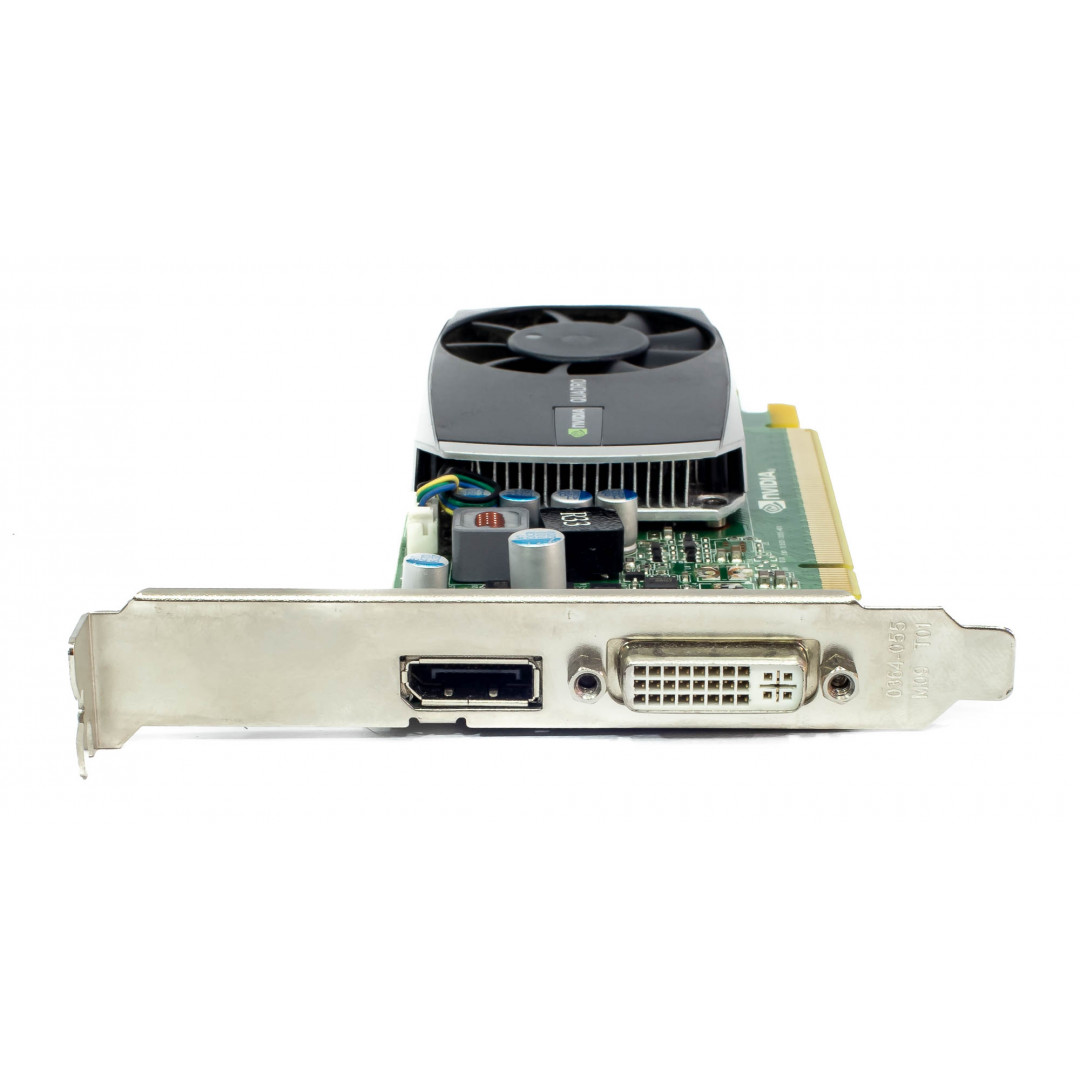

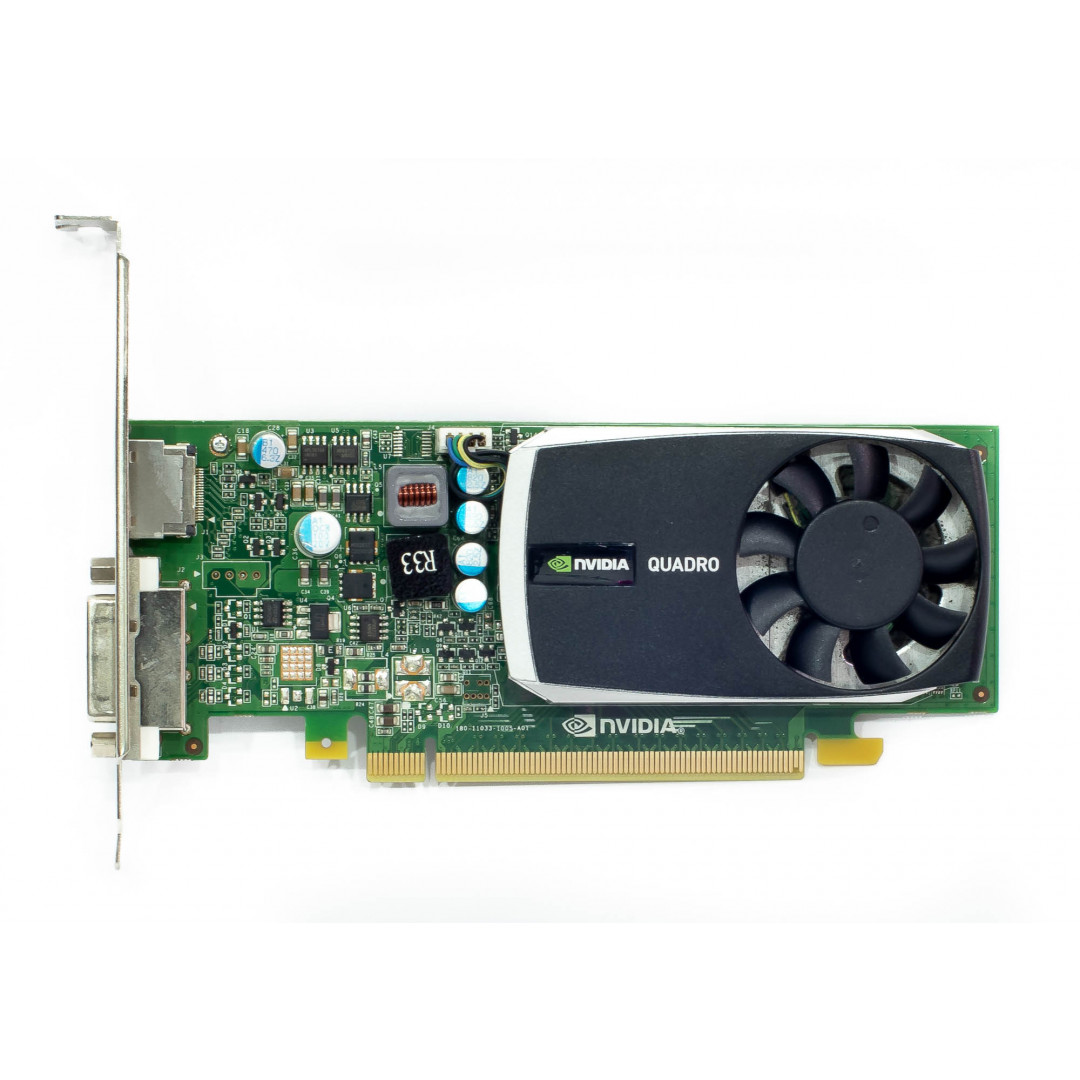

NVIDIA QUADRO 600 ΚΑΡΤΑ ΓΡΑΦΙΚΩΝ

Chipset: NVIDIA Quadro 600.

Μνήμη: 1 GB GDDR3.

Memory Interface: 128-bit.

Graphic Memory Bandwidth: 25.6GB/sec.

CUDA Parallel Processing Cores: 96.

Συνδεσιμότητα: 1 x PCI Express 2.0, 1 Slot.

Συνδέσεις: 1x DVI-I, 1x Display Port.

Μέγιστη Κατανάλωση: 40W.

Ανάλυση DisplayPort: έως 2560 x 1600 @ 60Hz και 1920×1200 @ 120Hz.

Ανάλυση Dual-link DVI-I: έως 2560 x 1600 @ 60Hz και 1920×1200 @ 120Hz.

Ανάλυση Internal 400 MHz DAC DVI-I output: Αnalog display έως 2048 x 1536 @ 85Hz.

Αρχιτεκτονική 3D γραφικών: Scalable geometry architecture, Hardware tessellation engine, NVIDIA GigaThread engine with dual copy engines, Shader Model 5.0 (OpenGL 4.0 and DirectX 11), Optimized compiler for Cg and Microsoft HLSL, Up to 16K x16K texture and render processing, Transparent multisampling and super sampling, 16x angle independent anisotropic filtering, 128-bit floating point performance, 32-bit per-component floating point texture filtering and blending, 64x full scene antialiasing (FSAA), Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later), DivX (version 3.11 and later), and Flash (10.1 and later), Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback).

NVIDIA CUDA Parallel Processing Architecture: API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran. NVIDIA Parallel DataCache hierarchy (configurable L1 and unified L2 caches), 64 KB of RAM (configurable partitioning of shared memory and L1 cache), Full IEEE 754-2008 – 32-bit and high performance 64-bit double precision, Dual Warp Scheduler.
