Ένας εξαιρετικός μικρός και οικονομικός εγγραφές δύο καναλιών απαραίτητο συμπλήρωμα για κάθε μουσικό.

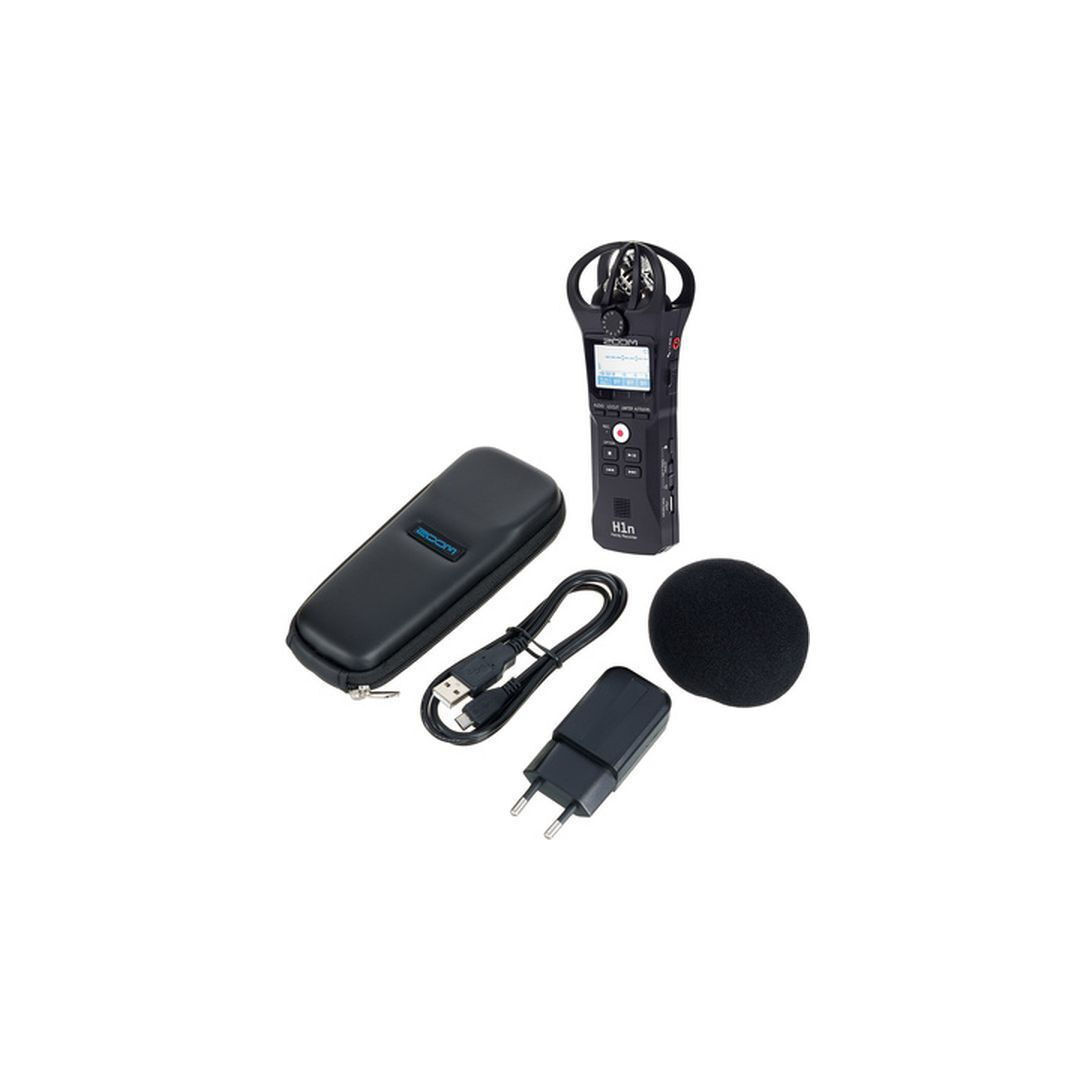

Τι περιλαμβάνει

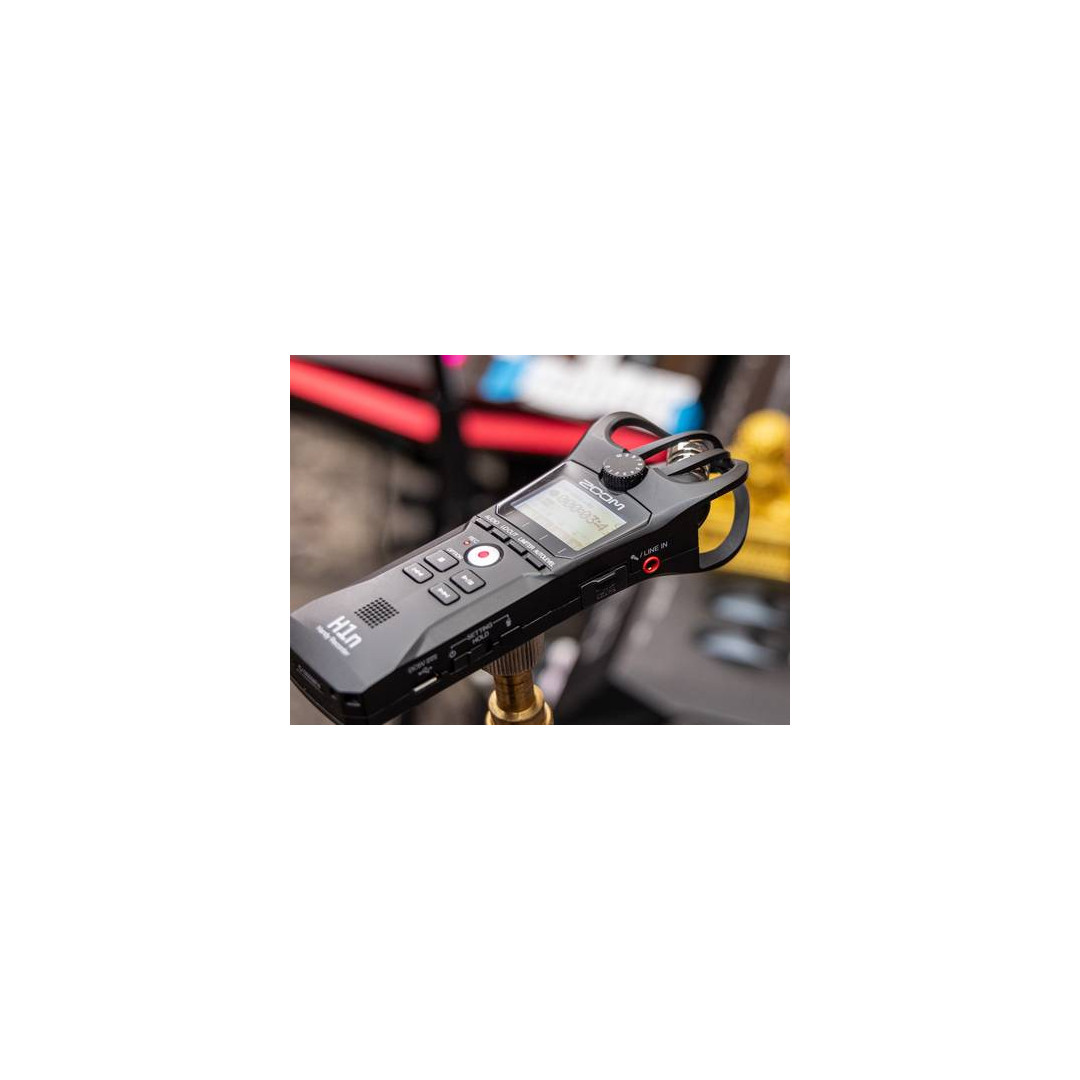

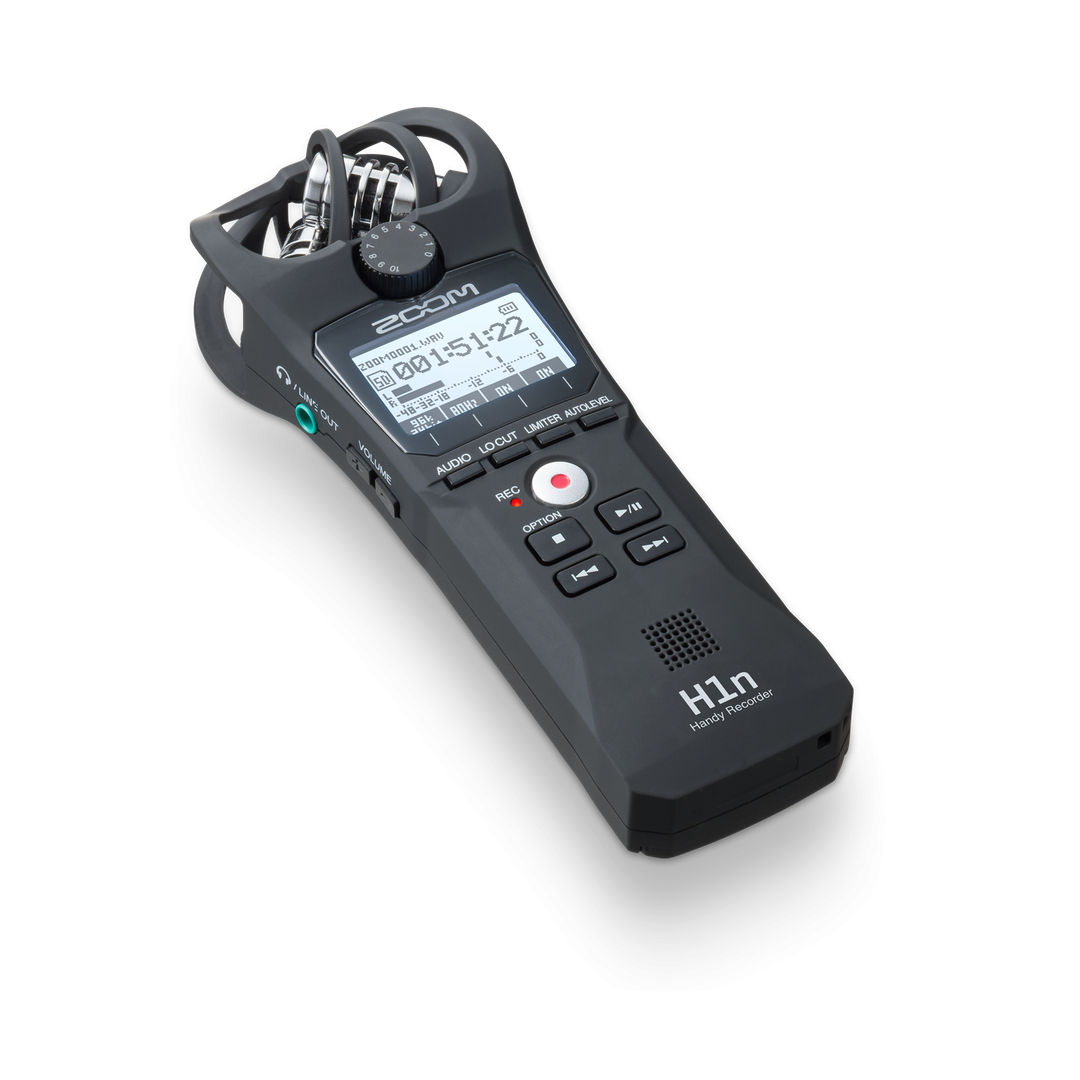

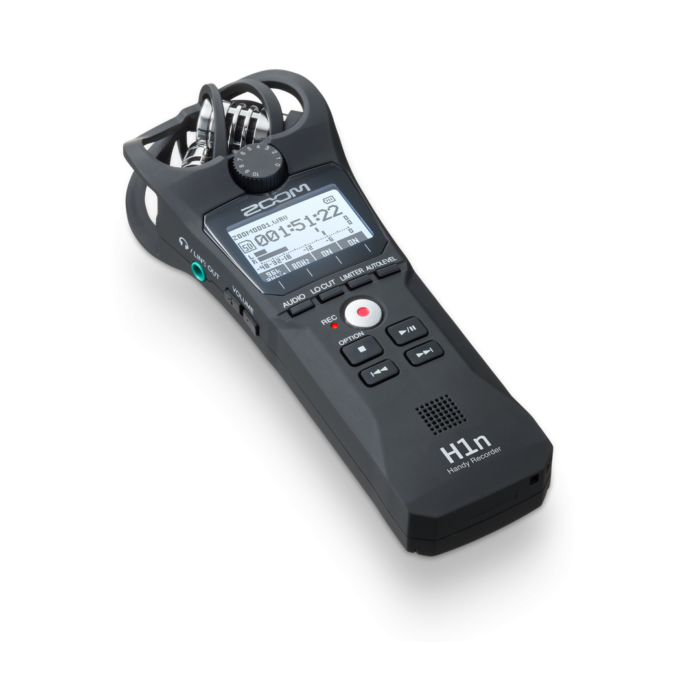

H1n Handy Recorder
Windscreen
AD-17 AC adapter
USB cable
Θήκη μεταφοράς
Χαρακτηριστικά
One-touch button controls
1.25” monochrome LCD display
Intuitive menus for easy operation
Stereo X/Y 90?microphones handle up to 120 dB SPL

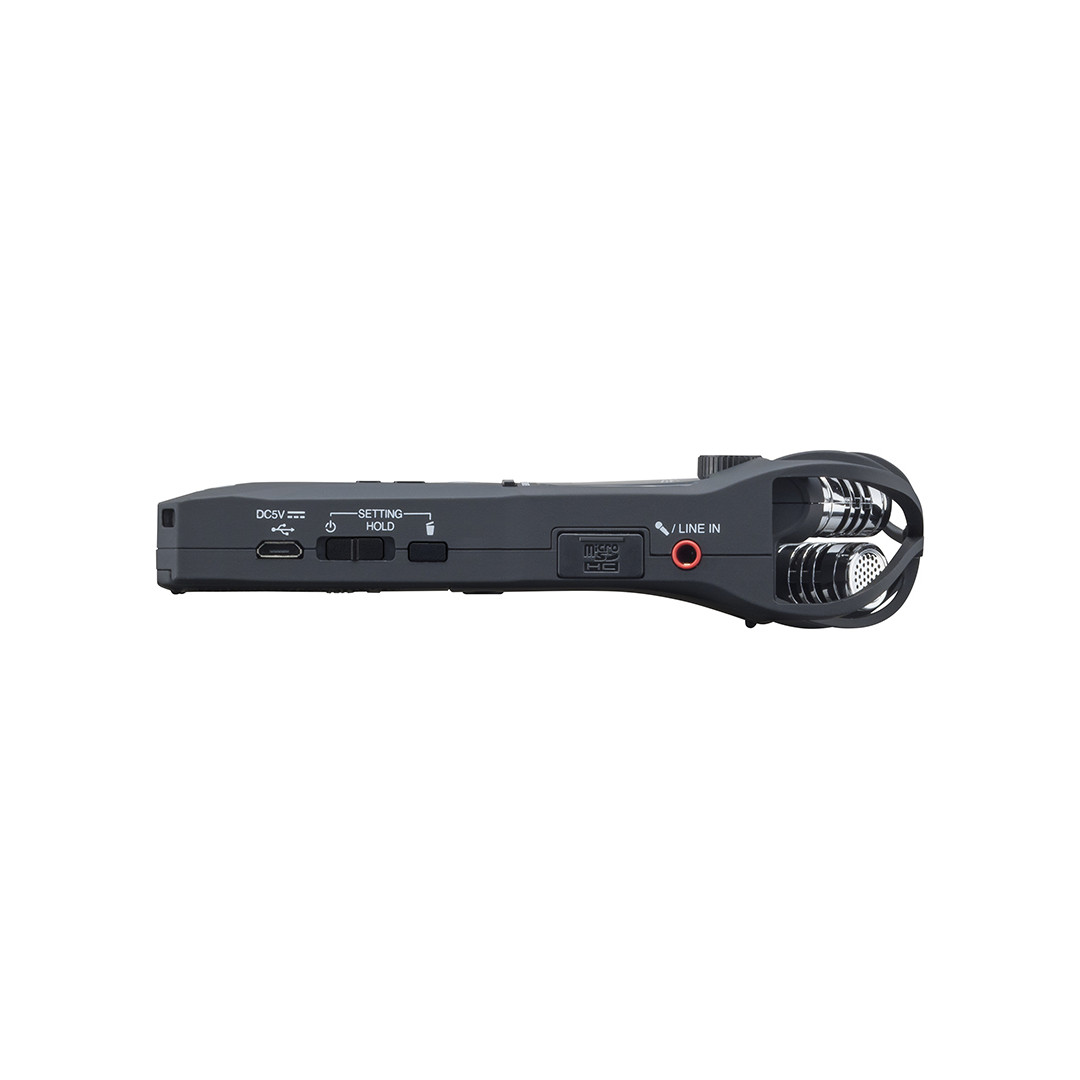

Stereo ?” Mic/Line In mini phone jack

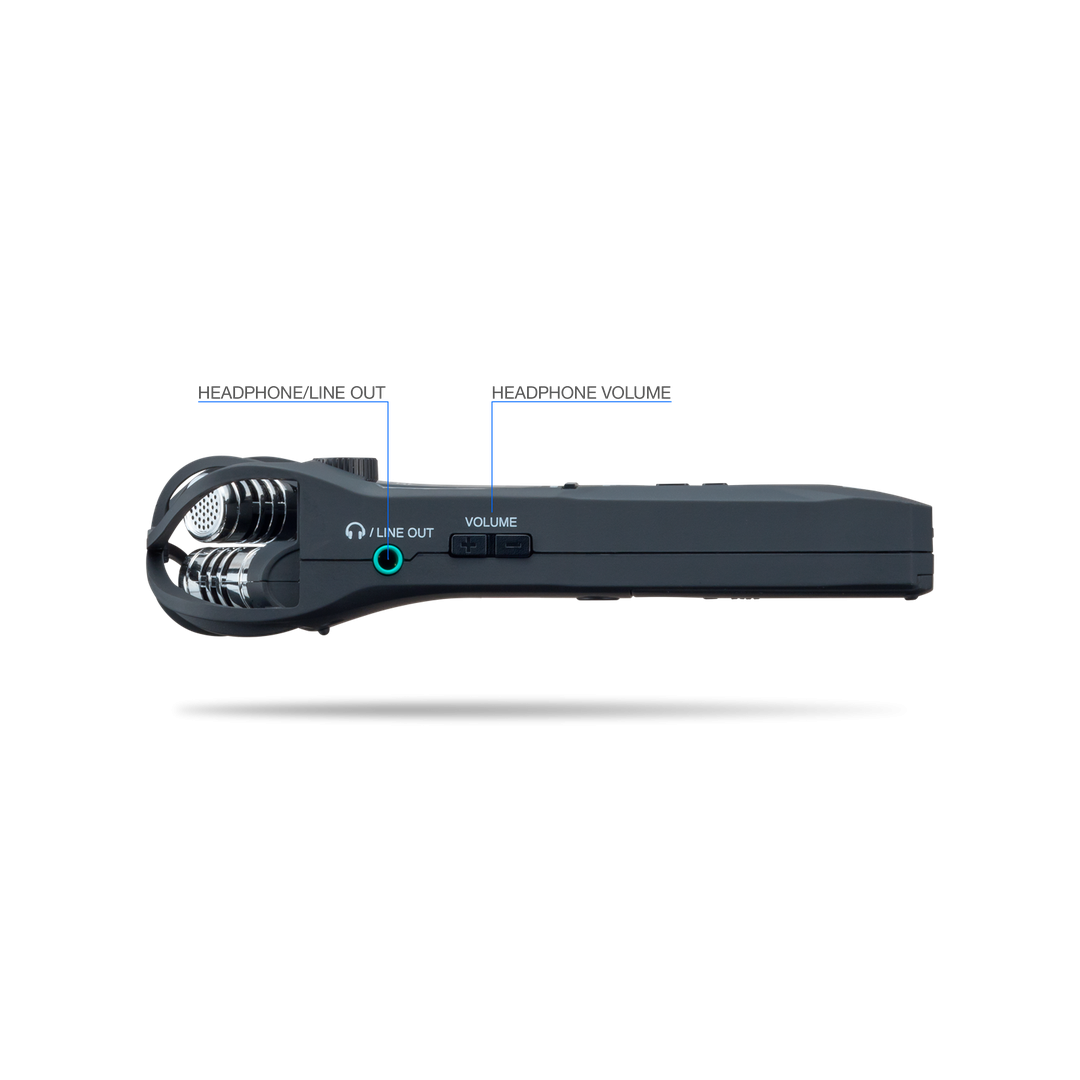

Stereo ?” Phone/Line Output jack with dedicated volume control
Limiter button for input signal up to 120 dB SPL
Playback Speed Control, Voice Emphasize Filter, and Stereo Bounce functions
Auto-Record, Pre-Record, and Self-Timer functions
Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats

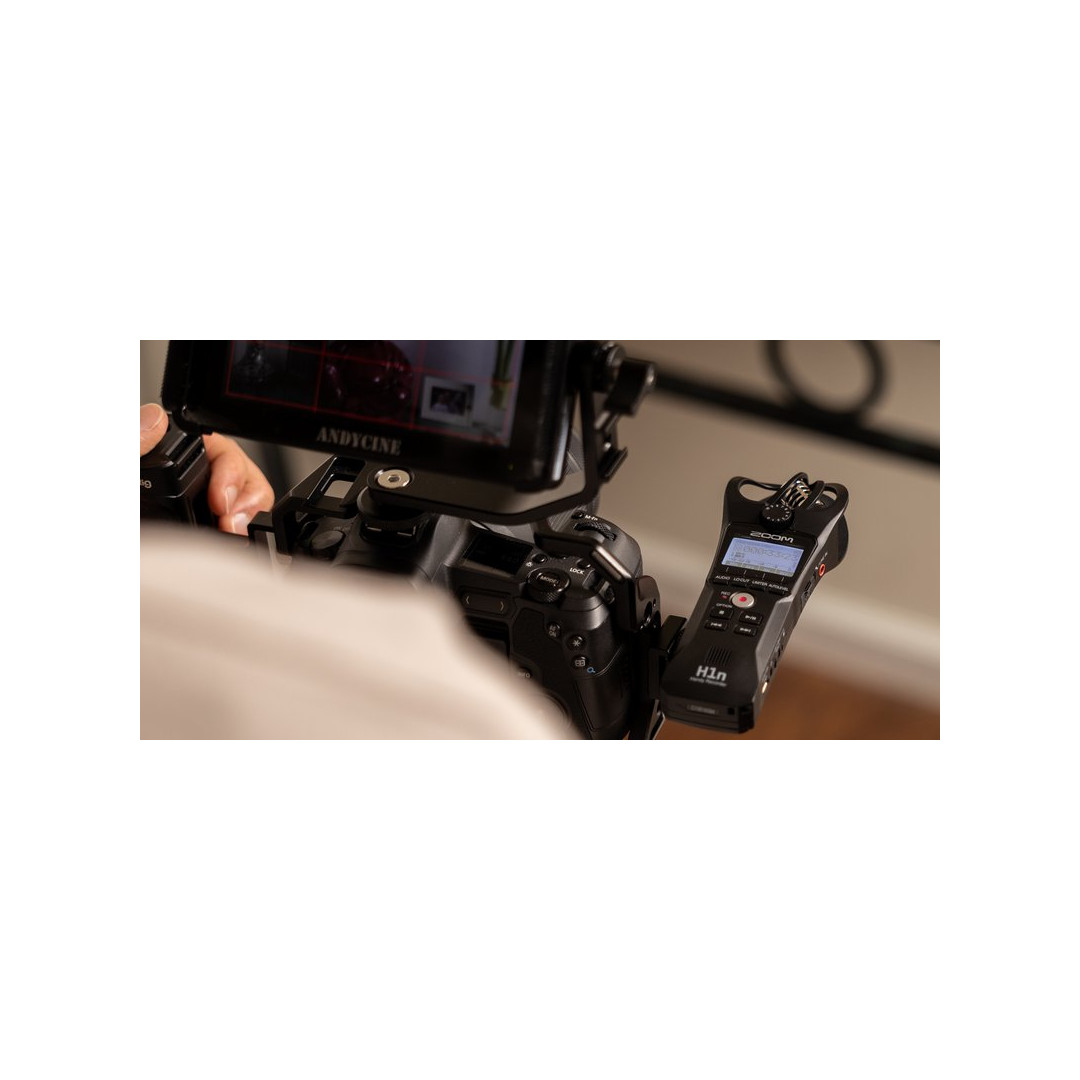

Tone generator for filmmaking use with DSLR and video cameras
Records directly to SD and SDHC cards up to 32 GB

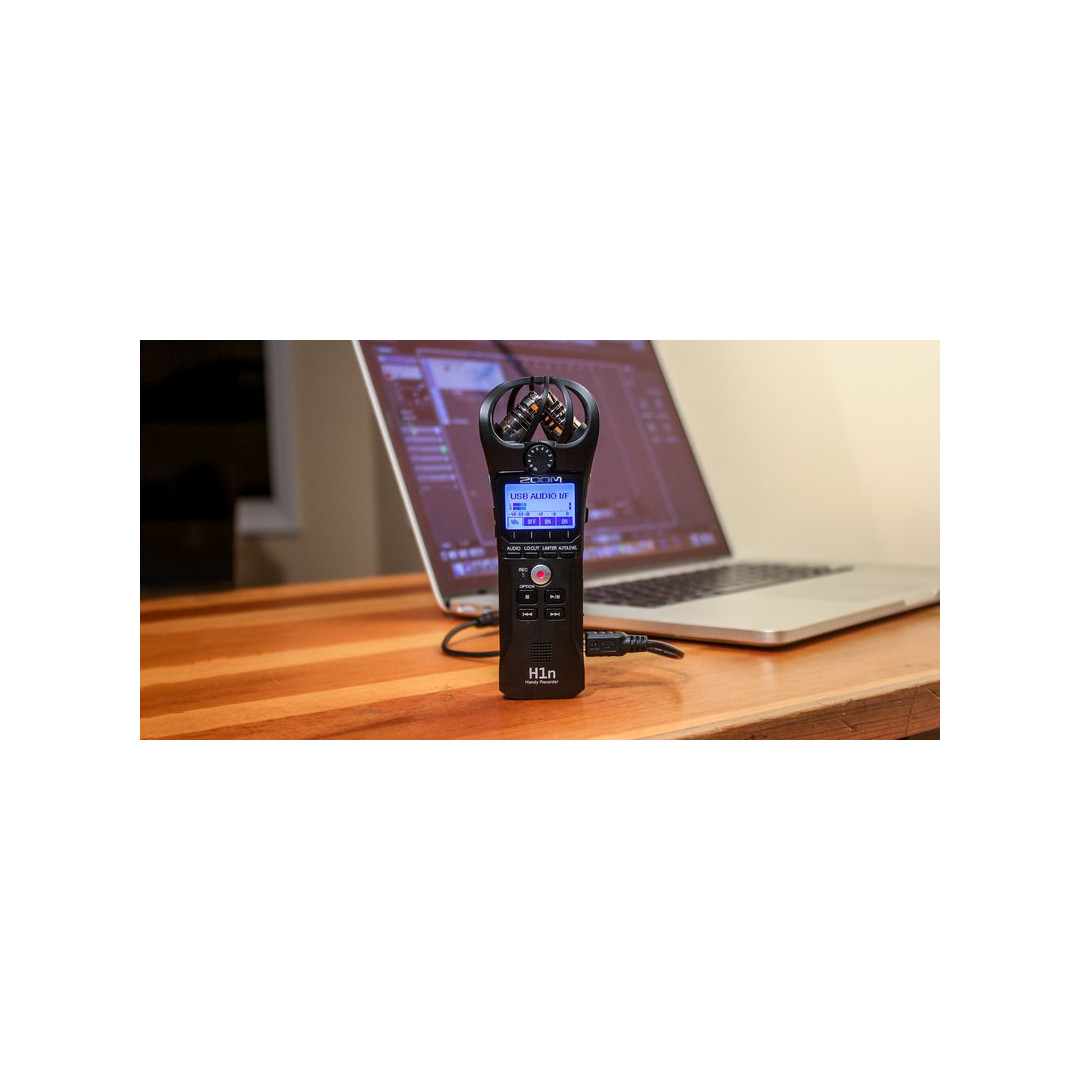

Micro USB port for data exchange to and from computer and use as an audio interface
Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
Up to 10 hours of operation with alkaline batteries
Specs
Simultaneous playback tracks: 2
Simultaneous recording tracks: 2
Functions: Lo-cut Filter, Limiter,Test Tone,Slate-Tone,Voice Emphasize

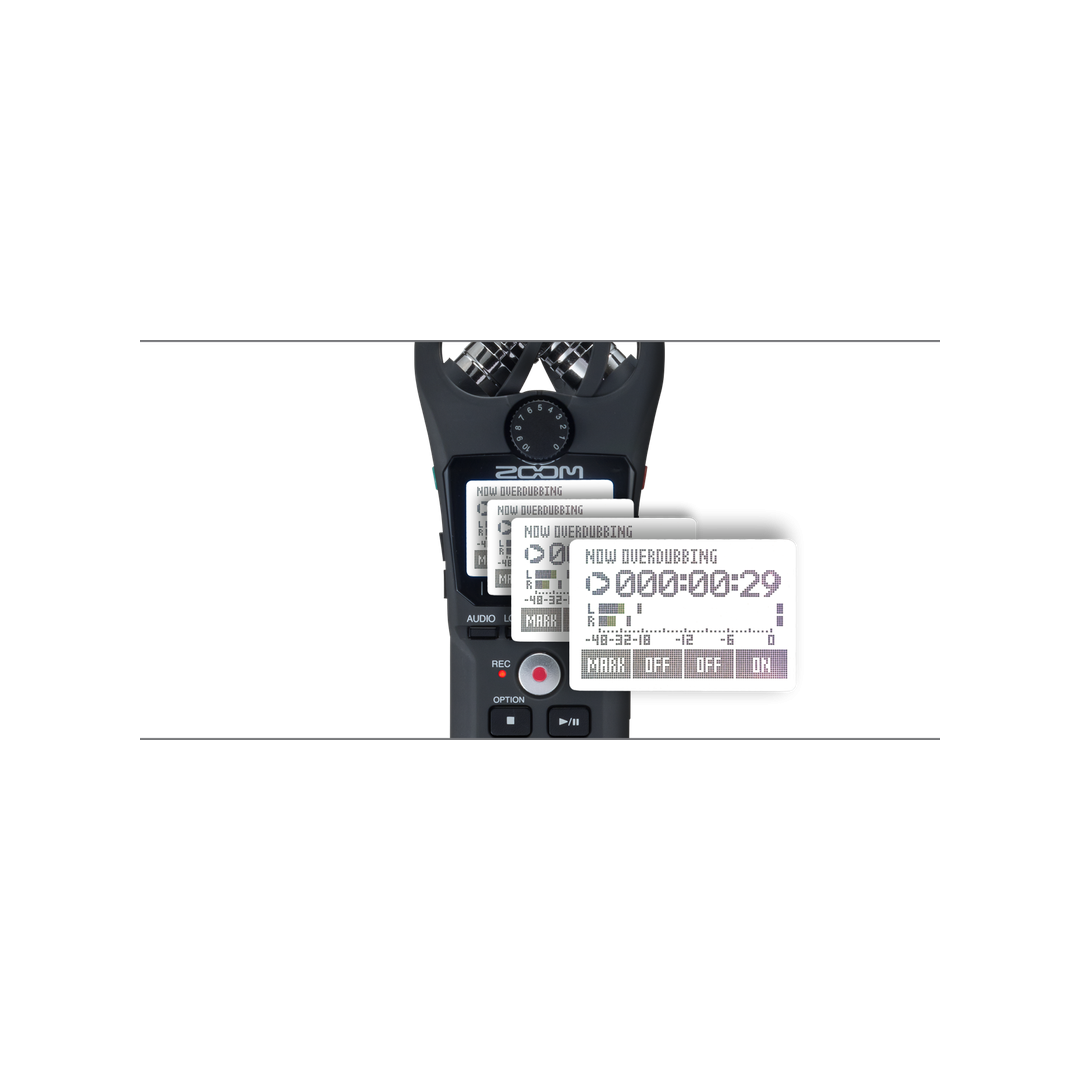

Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing
Recording formats: WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96
kHz/24-bit
A/D conversion: 24-bit, 128x oversampling
D/A conversion: 24-bit, 128x oversampling
Signal processing: 32-bit
Recording media: microSD/microSDHC cards (Class 4 or higher, up to 32
GB
Display: 1.25″ monochrome LCD (96 ? 64)
Built-in stereo mic: Unidirectional condenser, 90° XY stereo format
Gain: -? dB to +39 dB
Maximum sound pressure level: 120 dB SPL
Inputs: 1/8″ stereo phone jack
Rated input level: -? dB to -39 dBm
Input impedance: 2 kΩ
Plug-in power supported (2.5 V)
Built-in speaker: Built-in 500 mW mono speaker
Output impedance: 8 Ω
Outputs: 1/8″ stereo phone jack (combined line/headphones)
Rated output level: 20 mW + 20 mW into 32Ω load
Output impedance: 10 kΩ or more
USB: Micro USB port
Mass storage class operation: USB 2.0 high speed
Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out
Transfer method: asynchronous
Power requirements: 2 AAA batteries (alkaline, nickel-metal hydride rechargeable,
or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A
USB bus power
Battery life (alkaline batteries): Approximately 10 hours
(continuous recording time using built-in mic, 44.1 kHz/16-bit)
Dimensions: 1.9 in (W) x 5.4 in (D) x 1.2 in (H)
50 mm (W) ? 137.5 mm (D) ? 32 mm (H)
