– 5 10/100/1000Mbps RJ45 ports
– Provides network monitoring, traffic prioritization and VLAN features
– Innovative energy-efficient technology reduces power output by up to 57%
– Simple network set-up on top of plug-and-play connectivity
– Simple configuration by web-based user interface1 and management utility

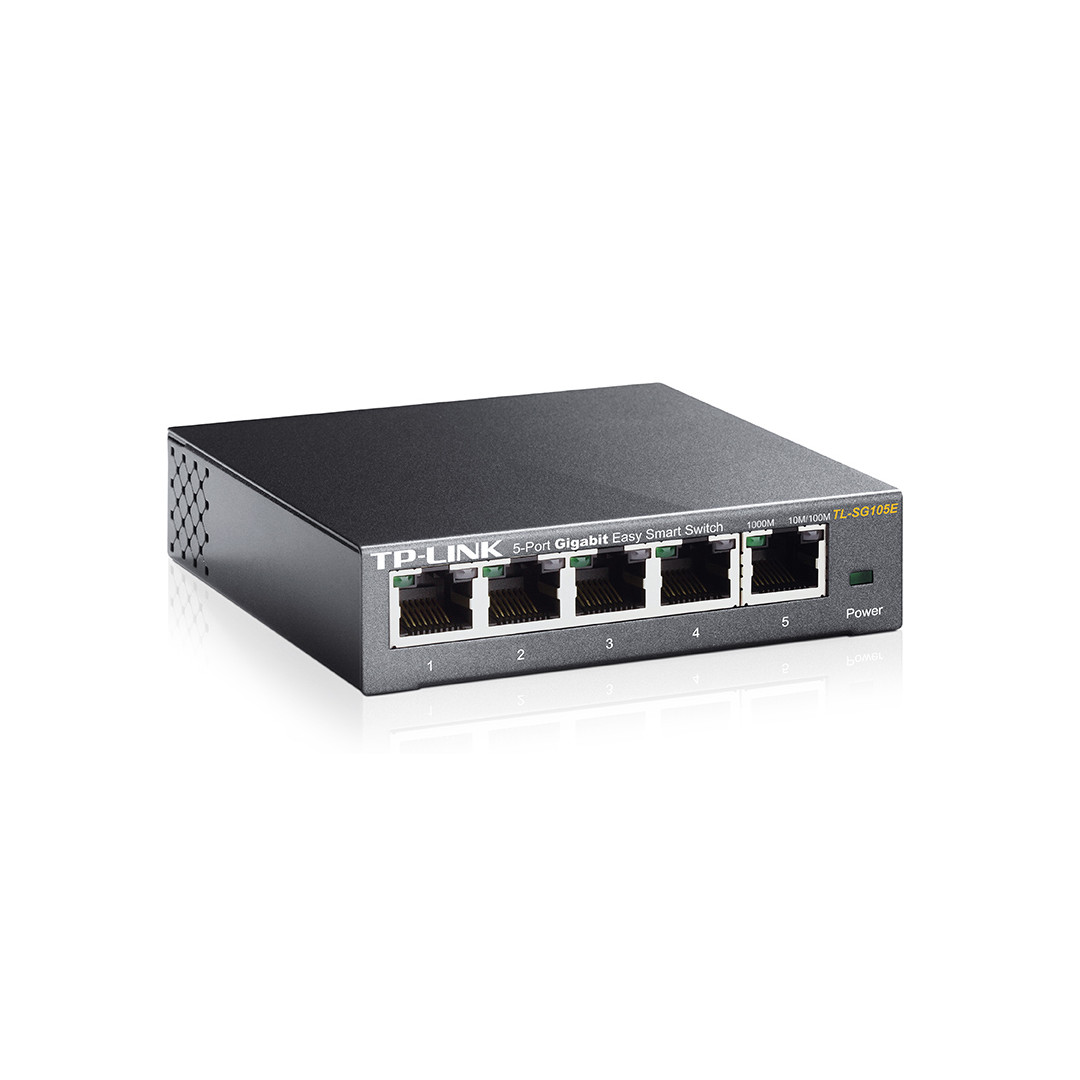

The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers Port-based/802.1p/DSCP QoS2 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 57% of power consumption, making it an eco-friendly solution for your business network.
Τεχνικά Χαρακτηριστικά:
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface: 5 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Power Supply: 100-240VAC, 50/60Hz
Power Consumption: Maximum: 2.49W (220V/50Hz)
Dimensions: 100 x 98 x 25mm
Packet Forwarding Rate: 7.4Mpps
MAC Address Table: 2K
Packet Buffer Memory: 1.5Mb
Jumbo Frame: 15KB
Περιεχόμενα συσκευασίας
TL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet
