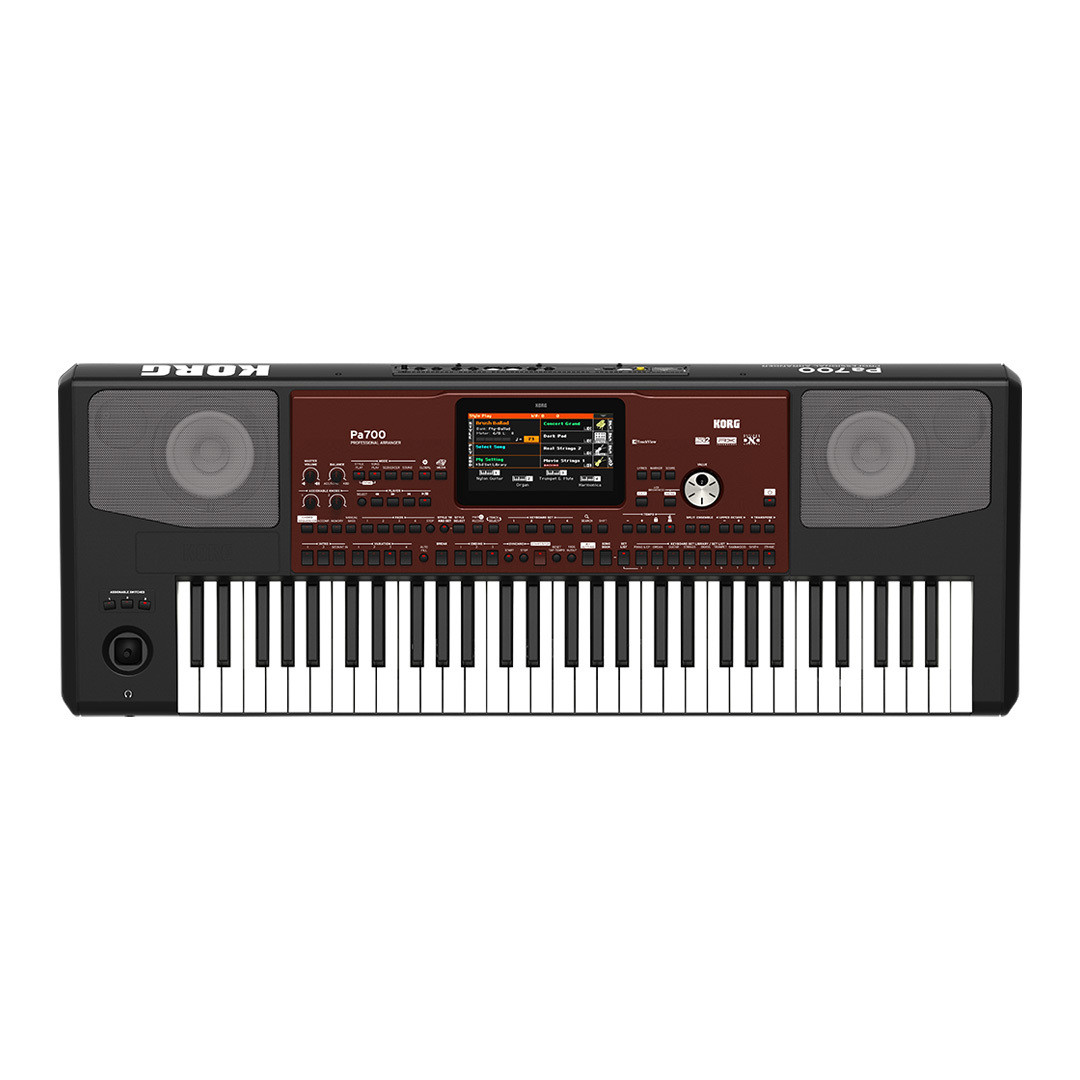

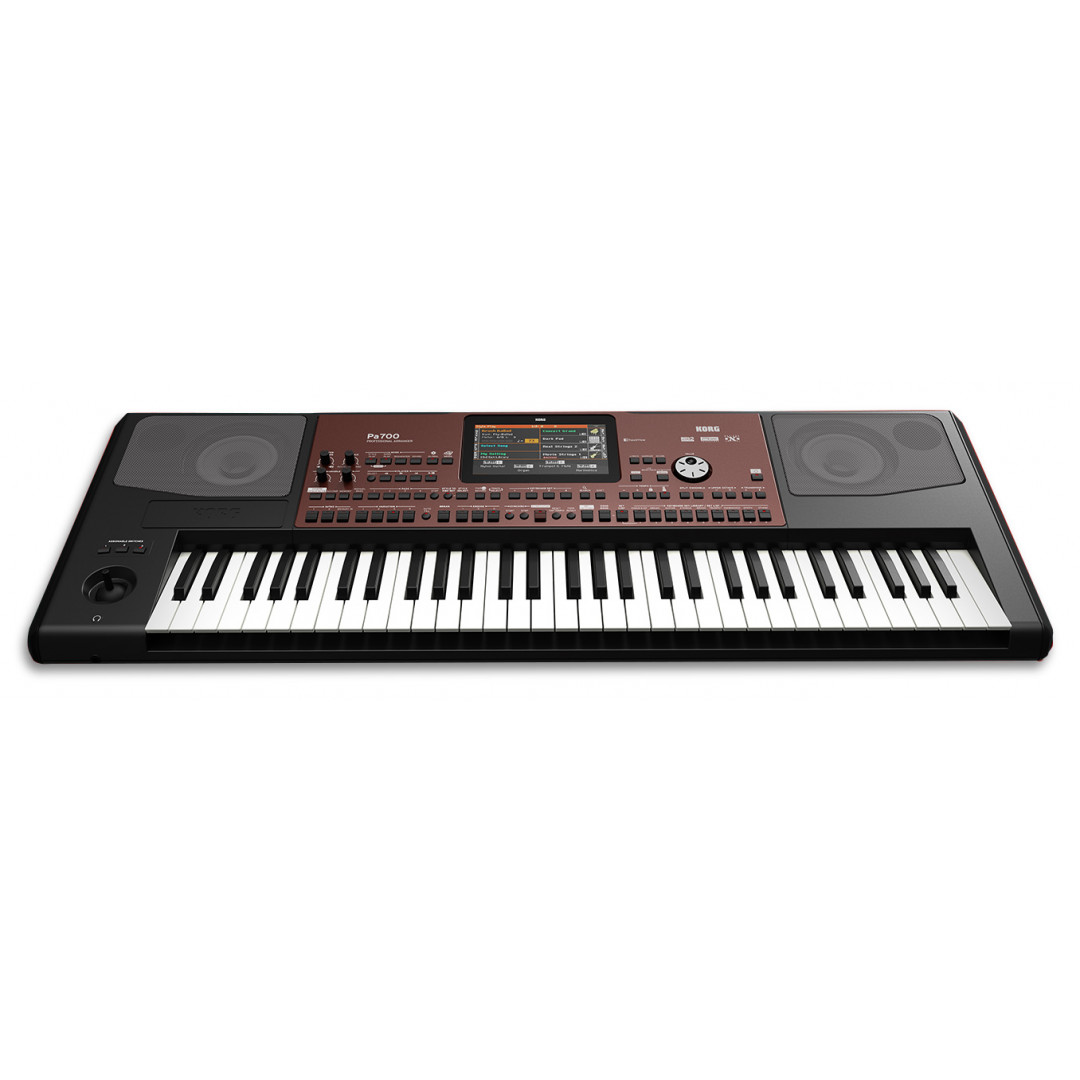

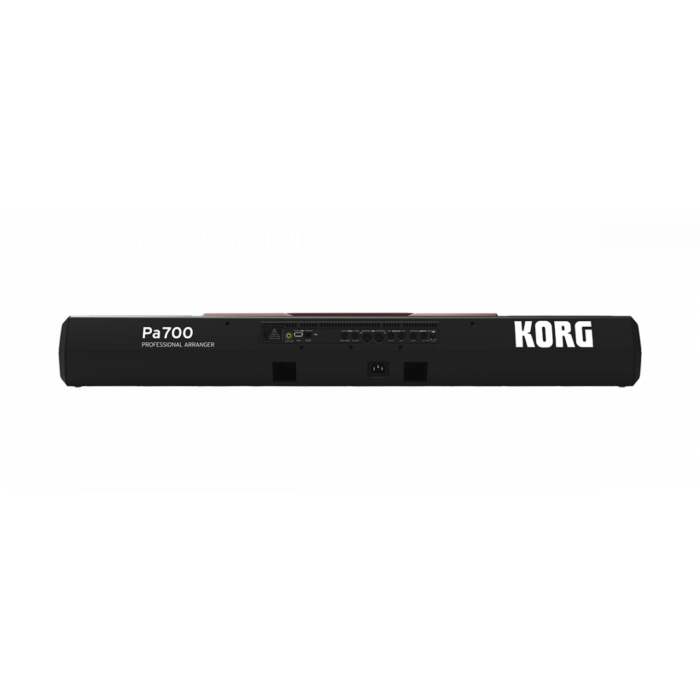

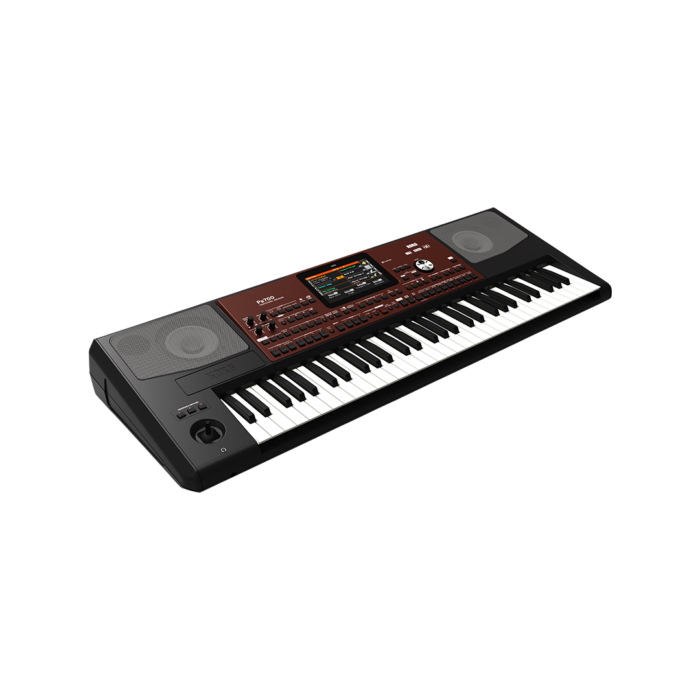

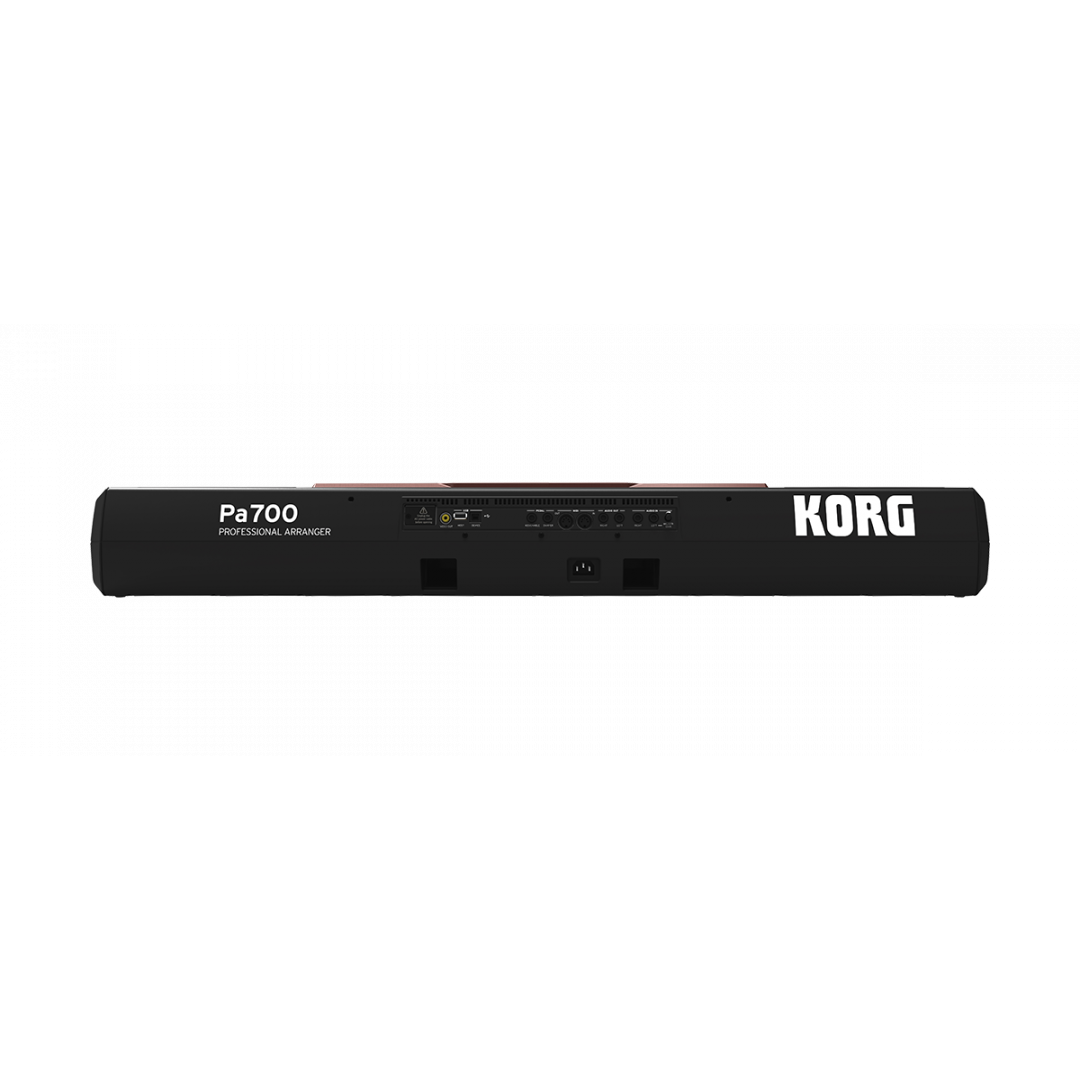

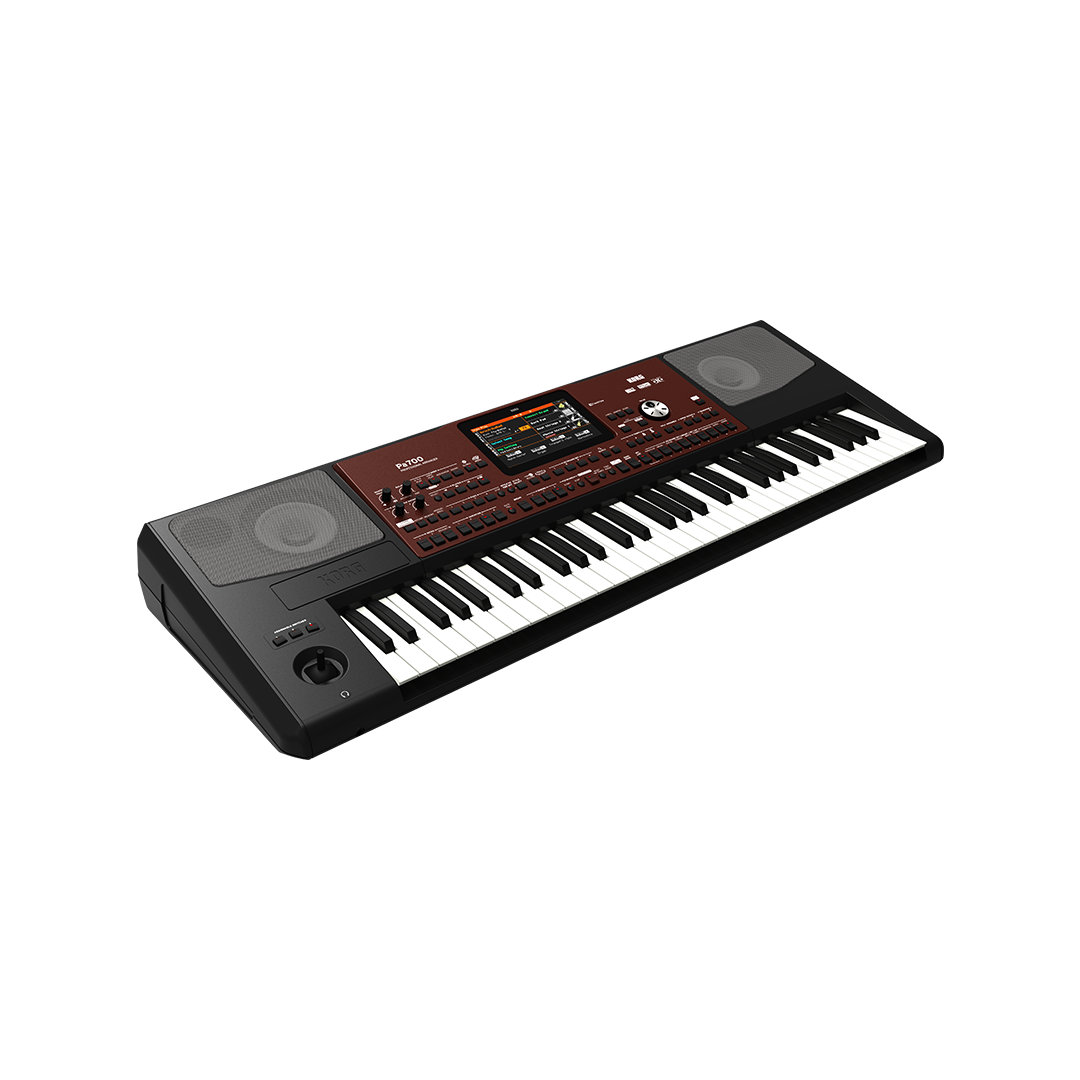

KORG PA 700 PROFESSIONAL ARRANGER

Το Pa700 είναι το νέο professional arranger μεσαίας κατηγορίας το οποίο αντικαθιστά το korg pa 600.

Μια από τις βασικότερες αλλαγές είναι ο τρόπος σύνθεσης ήχου ο οποίος είναι πλέον ο Enhanced Definition Synthesis – eXpanded. Η Μηχανή Enhanced Definition Synthesis – eXpanded, είναι η μηχανή σύνθεσης ήχου του Pa4x, και έχει πλήρη συμβατότητα σε ρυθμούς, ήχους Keyboards Set με το Pa4x, διατηρώντας παράλληλα συμβατότητα με παλαιότερα μοντέλα.

Επίσης σημαντική διαφορά ειναι η αύξηση της μνήμης sampler στα 128 mb με δυνατότητα συμπίεσης που ισοδυναμεί με 256 mb.

System
Upgradable operating system, Multitasking, Load while play

Sound Generator
EDS-X (Enhanced Definition Synthesis – eXpanded)
Filters with resonance, 3-band EQ on each Sound

Polyphony
128 voices, 128 oscillators

Effects

Accompaniment/Song: 2 insert effects; 2 master effects (148 types)
Keyboard Sounds: 1 insert effect; 2 master effects (148 types)
Final mastering effects: Limiter, Master EQ
Voice Processor: 5 FX, 28 Factory, 64 User Presets
Guitar Processor: 3 FX, 45 Factory, 64 User Presets

Sounds / Drum Kits
Factory: More than 1,700 Factory Sounds including a multilayer Stereo Piano with damper and body resonance, GM/XG sound sets and 106 Drum Kit
User: 512 Sounds, 256 Drum Kits
Digital Drawbars: 9 footages, percussion, key on/off, leakage, rotary speaker effect
DNC (Defined Nuance Control) Technology, Natural Ambience Drums
Full Sounds/Drum Kits editing

Sampling
128 MB compressed (equivalent to 256 MB linear data);
Loads KORG, WAV, AIFF and SoundFont™ formats
Saves KORG, WAV and AIFF formats
Full Edit, Time Slice

Styles
Factory: More than 370 Factory Styles, freely reconfigurable sets
User: 1,152 locations, including User and Direct banks
Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style;
Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style/Pad Record with Step Record, Track and Event Edit
Style Creator Bot (MIDI Song to Style Converter)
Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode

Chord Sequencer
Chord Sequence recorder and player in Style Play mode
Chord Sequences can be saved to Style and SongBook Entries
Edit functions: Delete, Copy from Style/SongBook, Import/Export from/to SMF

Keyboard Set Library
Memorize Keyboard Sound settings
Factory: More than 290 Factory Keyboard Sets, freely reconfigurable
User: 864 locations, including User and Direct banks
‘My Setting’ special Keyboard Set

KAOSS FX
Automatic MIDI FX generator
More than 65 Factory Presets

Song Play
Supported formats: MID, KAR, MP3+Lyrics, MP3+G
Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function

MP3 Player / Recorder
MP3 Player and Recorder
Transpose (+6/-5 semitones), Tempo change (±30%)
Vocal Remover
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, and KAOSS Effects

Sequencer
Quick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format

SongBook
Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options

Compatibility
Pa-Series models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads ‘i-Series’ models: Styles

Pads
Four Assignable Pads + Stop buttons
Pad Record function

General Controls
Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Joystick, 2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo
Lock; Metronome On/Off, Dial, Search, Shift Split, Record

Scale Controls
Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets

Control Inputs
Damper pedal (supports half-pedaling with the optional DS-1H pedal)
Assignable pedal/switch

Audio Inputs
Line (Left/Right): 1/4” jacks, +20dBm, 12k Ohm
Mic/Guitar (Left): 1/4” jack, with Gain control (0 — +40dB)
12k ohm (Mic) / 500k ohm (Guitar)

Audio Outputs
Left/Right, 1/4” jack, +21dBm, 0.003% THD+N@+18dBm
Headphone output (1/4” jack), 16-200 Ohms (50 Ohms suggested)

Speaker System
Amplification: 2 x 25W
Speakers: 2 x Dual Cone Speakers in Bass Reflex Box

MIDI
IN, OUT standard MIDI connectors
USB to MIDI using the USB ports
HOST: memory and controllers, DEVICE: personal computers
Eight user definable MIDI Setups

Storage

Internal memory: 960 MB
USB external drives (drive not included)
microSD card (not included); rear panel slot with plastic cover

Accessories

EXP-2 Foot Controller, XVP-10 Expression/Volume Pedal
DS-1H Damper Pedal (supports half-pedal)
PS-1, PS-3 Pedal Switch
